Industrial Fire Testing Equipment HTI Heat Transmission ISO 9151 BS EN 367

Brand Name : Daxian

Model Number : DX8613

Certification : ISO 9151,BS EN 367

Place of Origin : China

MOQ : one set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15work days

Packaging Details : Wooden Case

Product namee : ISO 9151 HTI Heat Transmission BS EN 367

Standard : ISO 9151,BS EN 367

Weight : about 80 kg

Size : 500mm(W)X 500mm(H)X 500mm(D)

Warranty : 12 months

Sample : Protective clothing

Contact Now

ISO 9151 HTI Heat Transmission BS EN 367
Product Description:
Heat transfer index is calculated from the mean time in seconds to achieve a temperature rise of 24±0.2℃ when testing by this method using a copper disc and a starting temperature of 25±5℃. The heat transfer index provides a method of grading materials which does not imply that the material tested will give any precise protective time under actual use conditions.
Standards:
- ISO 9151
- BS EN 367
Features:
The calorimeter cooling device shorten the test time.
The mean result for the three test specimens is calculated as the HTI.
The calibration of heat flow density of 80 kW/m2 is performed automatically by software.
The apparatus is designed and manufactured according to EN 367 and ISO9151 standards.

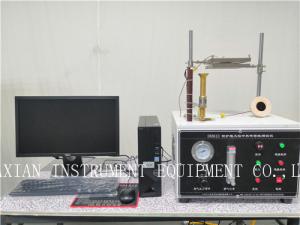

The apparatus consists of the burner, the cover sheet and the specimen holder with copper calorimeter.
The cover sheet and the specimen holder are controlled via pneumatic transmission which is automatically controlled by software.
A horizontally oriented test specimen subjected to an incident heat flux of 80KW/m2 from the flame of a Meker burner beneath it.

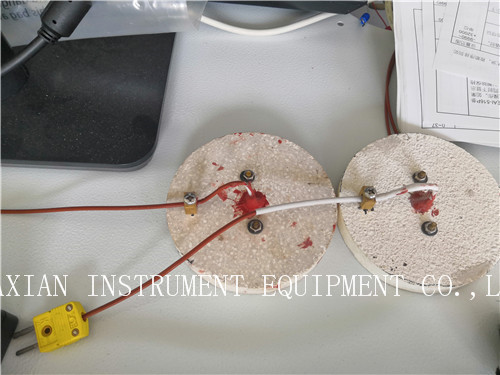

The heat passing through the specimen is measured by means of a small copper calorimeter on top of and contact with the specimen.
The time to record a temperature rise of 12 or 24℃ in the calorimeter is recorded in seconds.
Specification:
Size
500mm(W)X 500mm(H)X 500mm(D)
Weight
about 80 kg
Electrical
230 volts Nominal 10 Amps
Ambient Temperature
Operating 25±5℃
Gas Supplies
Propane and air compressed air

*BS EN 367 ISO 9151 Protective Clothing HTI Heat Transmission Tester
With excellent service and competitive price
For more information, pls contact us at any time
