NBS Smoke Density Chamber

Brand Name : DAXIAN

Model Number : DX8368

Certification : ISO5659.2-2006、GB 8323.2-2008

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5 sets per month

Delivery Time : 5-9 work days

Packaging Details : Wooden case

Power : Electronic

Usage : Measuring the specific optical density

Warranty : 1 Year

Product name : Plastic Testing Machine

Standard : ISO5659.2-2006、GB 8323.2-2008

Power supply : AC200-240V 50Hz

Contact Now

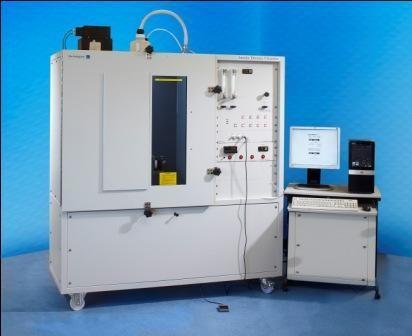

ASTM E 662 Nbs Smoke Density Chamber

Introduction:

This fire-test-response standard covers determination of the specific optical density of smoke generated by solid materials and assemblies mounted in the vertical position in thicknesses up to and including 1 in. (25.4 mm).

The test chamber is approximately 3 feet (915 mm) high, 3 feet (915 mm) wide, and 2 feet (610 mm) deep, encompassing a volume of about two-thirds of a cubic yard (0.52 m3). Exposed sample size is approximately 2-1/2 inches (63.5 mm) square, and it is held in a vertical position facing a radiant heat source.

Standards:
- ISO5659.2-2006
- GB 8323.2-2008

Machine performance:

Transmittance resolution 0.0001%;
Measurement range 0-100%;Automatic shift during measurement.
Measurement accuracy ± 3%
Working voltage AC200-240V 50Hz;
Environmental humidity at room temperature to 40 ºC
Working environment when the instrument is running, it should avoid direct glare and no forced air flow.
Measurement software based on WINDOWS XP operating interface, LabVIEW style.Show the transmittance and time curve.English and Chinese interface, and provide Chinese and English instruction manual.
